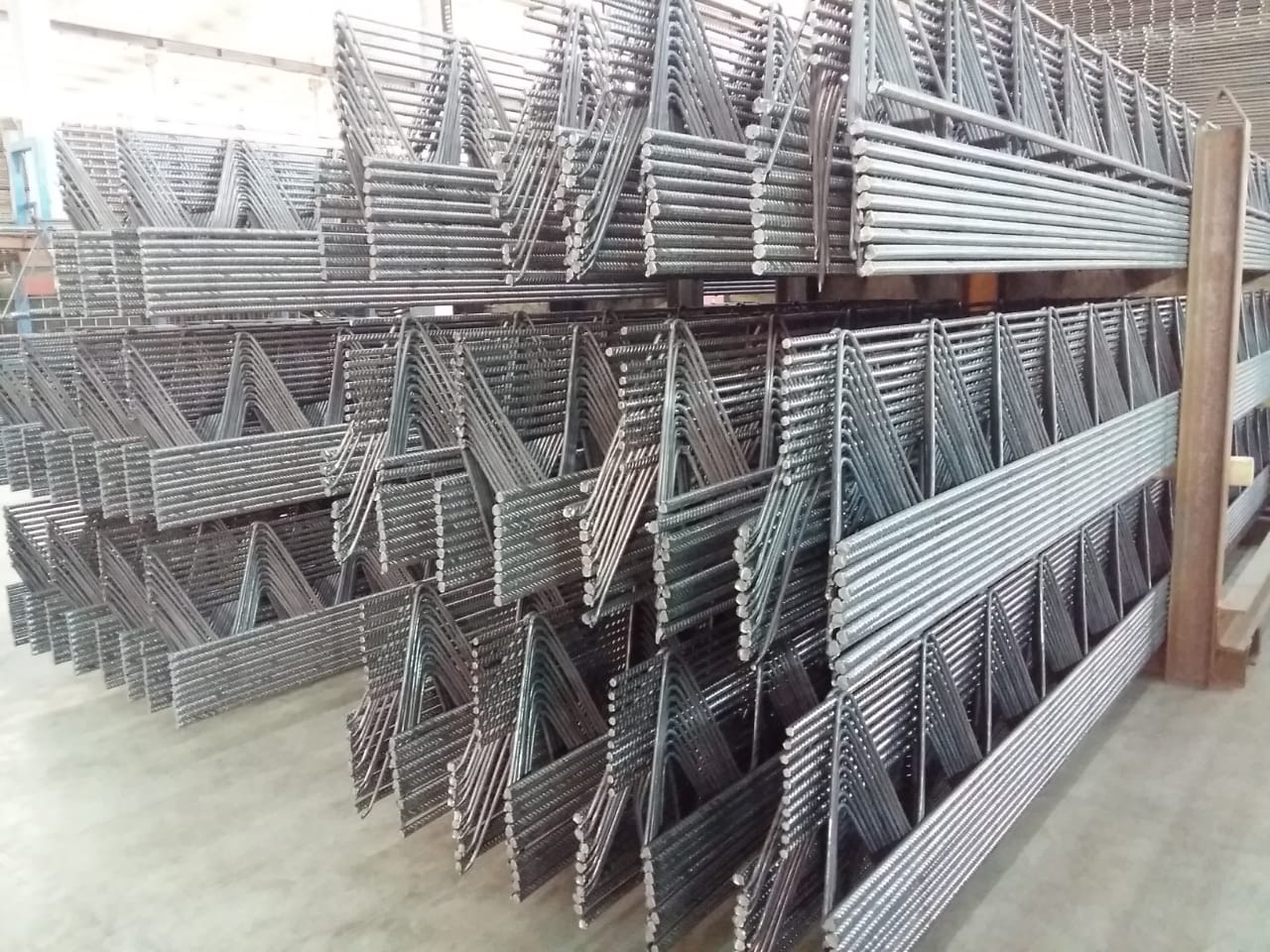

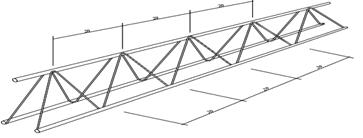

Lattice girder

Description

Use
Reinforcement of floors in INTERJOIST
Advantages
  • Wide range of diameters (from 6mm to 12mm)
  • Length up to 14m
  • Height up to 300mm
  • Gain in time and material
  • Steel Grade FeE500 (B500A)
Beam
H/L
1

Ø
Sup

2

Ø
Int

3

Ø
Inf

Weight
Kg/ml
100/90 6 2*5 2*10 1.92
130/90 6 2*5 2*12 2.52
180/90 8 2*5 2*12 2.82
230/90 8 2*5 2*12 2.95
